Product Description
This tiny servo is great for applications such as:
- Building a miniature walking robot.
- Creating grippers or other mechanisms for small robots.
- Moving control surfaces on small model aircraft.
It measures just 20.0 x 8.5 x 19.8 mm (0.79" x 0.33" x 0.78") and weighs only 3.7 g (0.13 oz) without its 15cm (6") lead. The lead is terminated with a standard “JR”-style connector, which is Futaba-compatible.
 |

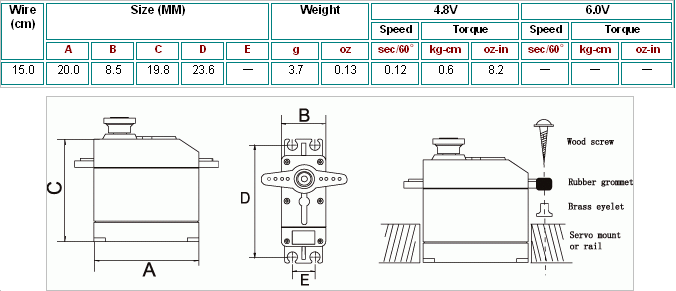

The servo ships with the hardware shown below. Please note that while the above dimension diagram mentions rubber grommets and brass eyelets, these components are not part of the included hardware.
 |

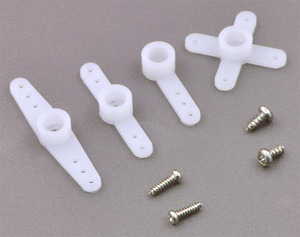

| Hardware for the sub-micro servo 3.7 g. |
|---|
The servo is intended for operation at 4.8 V
